CNC Double Column Vertical Machining Centre

CNC Double Column Vertical Machining Centre

CNC Double Column Vertical Machining Centre
CNC Double Column Vertical Machining Centre
CNC Double Column Vertical Machining Centre
CNC Double Column Vertical Machining Centre

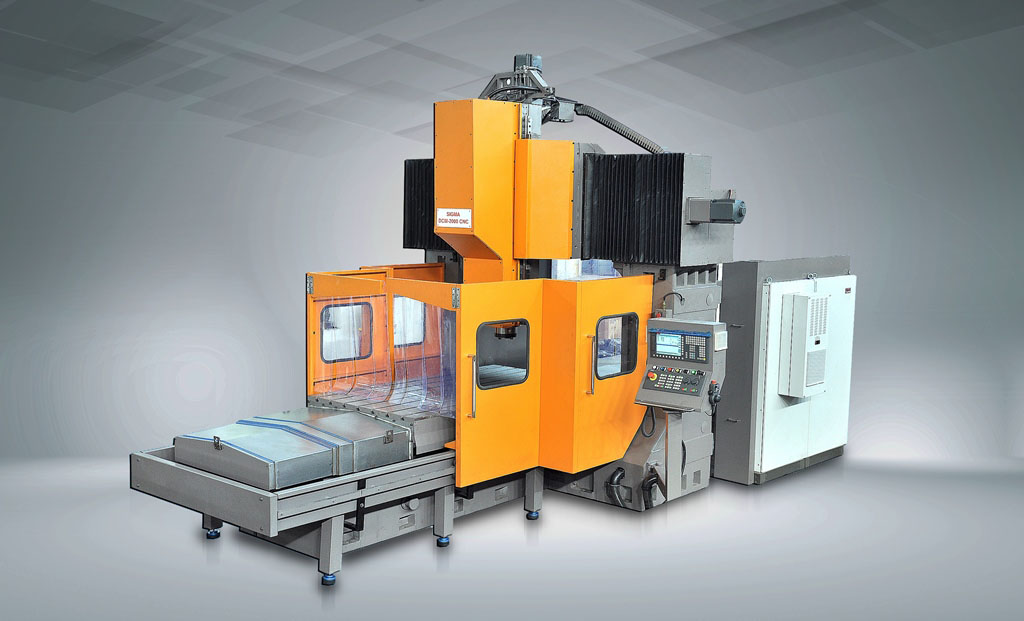

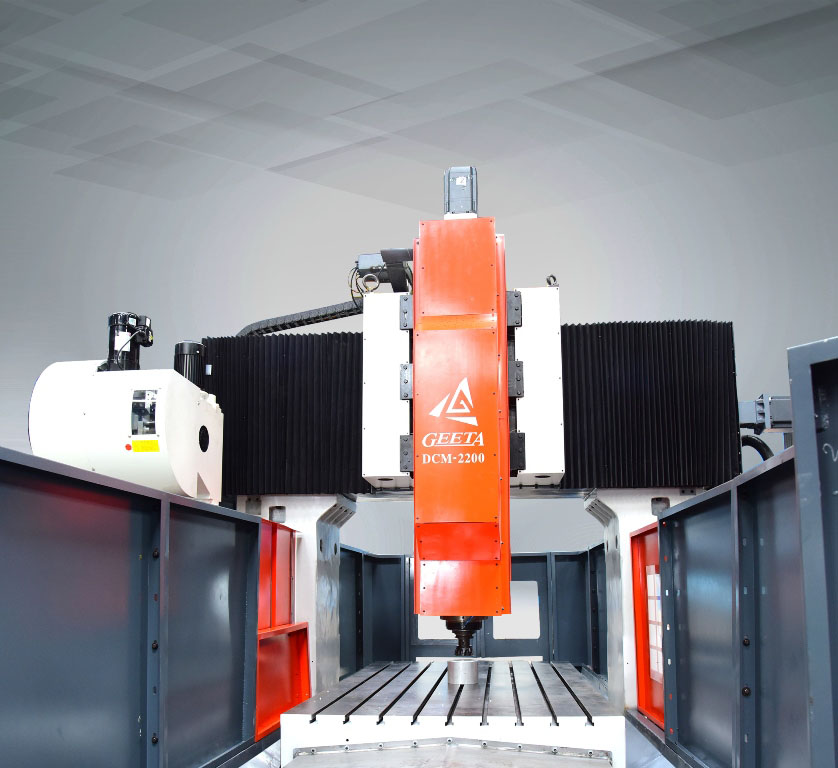

Machine Introduction

Geeta undertake building of double column vertical machining centre recently has already managed achieving the hard part machining with robust built and wider base structure. The working table able to take up to 10 tons.

  • Sigma DCM 2000
  • Sigma DCM 3500
  • Sigma DCM 4500

Technical Specification

SIGMA DCM 2000 SIGMA DCM 3500 SIGMA DCM 4500
Table
Table Size mm 2000 x 1200 3500 x 1500 4500 x 1800
T – Slot Dimension mm 7 x 22 x 150 7 x 22 x 150 9 x 28 x 160
Maximum load on Table Kgs 4000 7000 10000
Distance between Column mm 1700 2200 2500
Capacity
X – Axis Traverse mm 2200 3700 4700
Y – Axis Traverse mm 1500 2000 2200
Z – Axis Traverse mm 800 / 1000 800 / 1000 800 / 1000
Distance from Spindle Face to Table Top min – max 120 – 920 120 – 920 120 – 920
Feed mm/m 0 – 6000 0 – 6000 0 – 6000
Rapid mm/m 10000 10000 10000
Minimum Input Increment mm/m 0.001 0.001 0.001
Main Spindle
Spindle Motor Power Kw 22 22 22
Spindle Speed rpm 3000 (Gear Box) / 6000 (Direct Drive) 3000 (Gear Box) / 6000 (Direct Drive) 3000 (Gear Box) / 6000 (Direct Drive)
Spindle Taper BT – 50 BT – 50 BT – 50

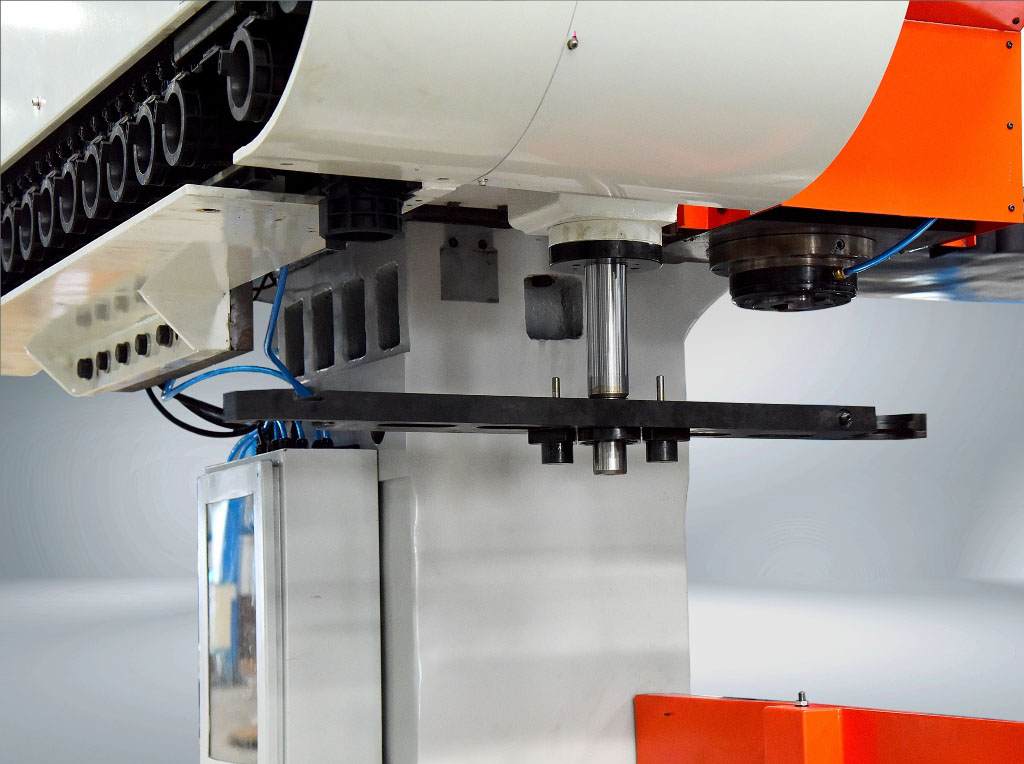

Automatic Tool Changer (Optional)
No. of Tools 24 24 24
Maximum Tool Diameter / mm 125 / 210 125 / 210 125 / 210
Adjacent Empty Pockets
Maximum Tool Length mm 350 350 350
Maximum Tool Weight Kgs 15 15 15
Tool Change Time Sec. 10 10 10
Accuracy
Positioning Accuracy mm 0.02 0.02 0.02
Repeatability mm 0.01 0.01 0.01
Machine Weight Kgs 22000 32000 38000
CNC Controller Siemens / Fanuc / Mitsubishi
Specification and Designs are subject to changes without Prior Notice.

Standard Accessories

  • Heavy Duty well stress relieved Cast Iron Structure
  • AC SERVO Spindle Drive
  • LM Guideways and Ball Screw for X Y Z W Axis
  • Centralized Automatic Lubrication System
  • External Coolant Equipment with Tank
  • Hand held unit
  • Machine Lamp and Signal Light
  • Operating Tools
  • Leveling Pad and Foundation Bolt Machine Manual
  • Window type Splash Guard
  • Electric Panel with Air Condition
  • Z Axis Hydraulic Balance
  • Foot Switch for Tool Clamp / Declamp
  • Laser Calibration in all Linear Axis

Optional Accessories

  • Automatic Tool Changer – 24 Tools
  • Coolant through Spindle
  • Linear Scale for Axis
  • Auto Touch Probe System
  • Chip Conveyor
  • Coolant with Filtration System
  • Right Angle Manual Head
  • Full Cover Enclosure Universal Milling Head Manual
  • Voltage Stabilizer
  • Isolation Transformer
  • Z – Axis 1000 mm Traverse
