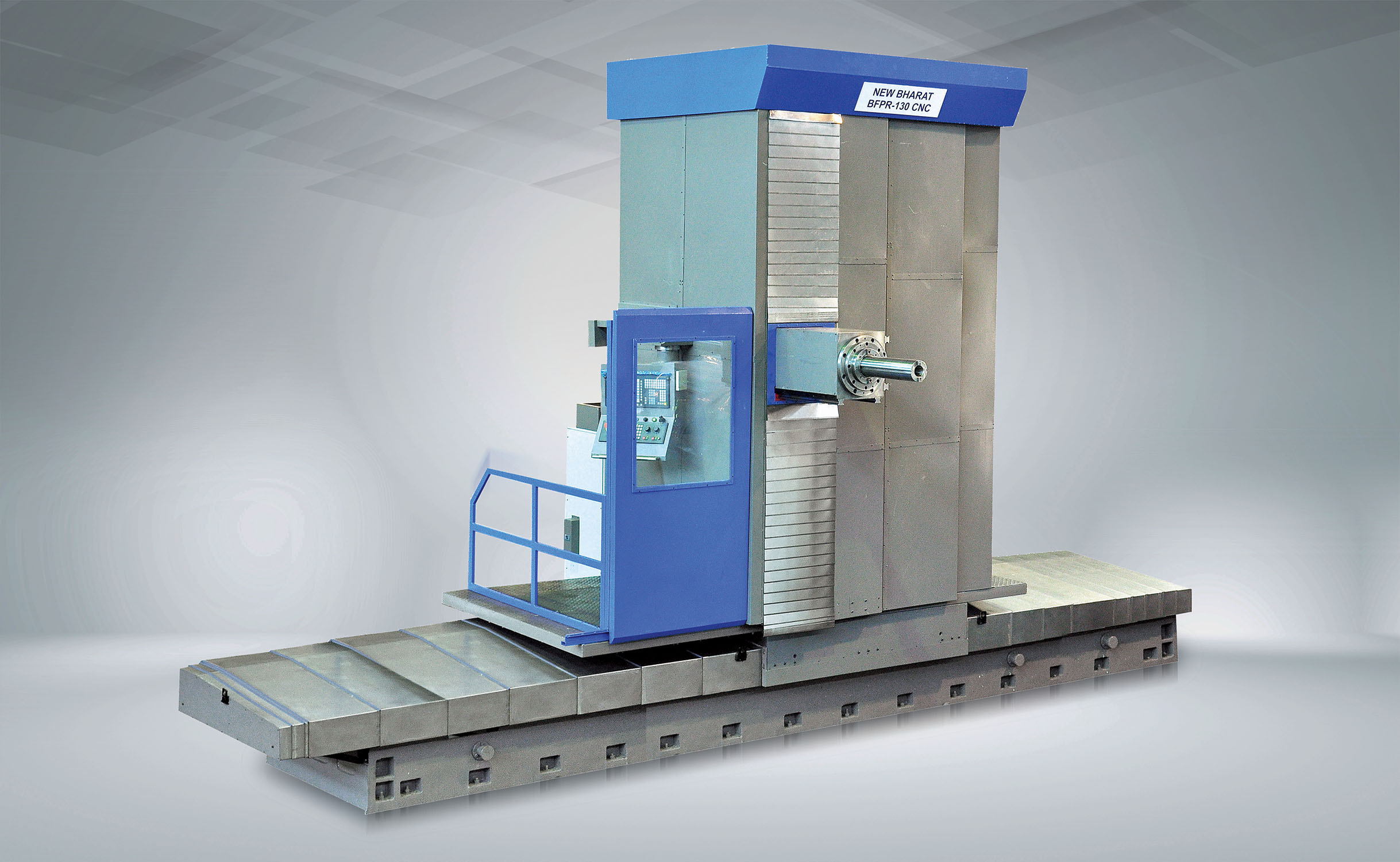

Derived from our New Bharat BFP series and keeping market requirements in mind, we introduced Floor Type Horizontal Boring Machine with Ram. Our New Bharat BFPR models have all the features of New Bharat BFP series with ram travel as add on, able to perform in depth boring and milling operations. Real time sag compensation for ram and spindle travel helps to minimize the error increasing the overall accuracy of the machine.
| NEW BHARAT BFPR – 110 | NEW BHARAT BFPR – 130 | NEW BHARAT BFPR – 160 | ||
| Spindle Head | ||||
| Boring Spindle Diameter | mm | 110 | 130 | 160 |
| RAM Dimension | mm | 380 x 420 | 380 x 420 | 460 x 520 |
| Spindle Speed | rpm | 0 – 2500 | 0 – 2500 | 0 – 2500 |
| Spindle Taper | BT – 50 | BT – 50 | BT – 50 | |
| Spindle Power | Kw | 22 | 28 | 37 |
| Travel | ||||
| X – Axis Traverse (Column Longitudinal Movement) | mm | 3000 to 20000 | 3000 to 20000 | 3000 to 20000 |
| Y – Axis Traverse (Spindle Head Vertical Movement) | mm | 1500 / 2000 | 2000 / 2500 / 3000 | 3000 / 3500 / 4000 |
| Z – Axis Traverse (RAM Movement) | mm | 700 | 800 | 800 |
| W – Axis Traverse (Spindle Axial Movement) | mm | 700 | 700 | 800 |
| Rotary Table (Optional) | ||||
| Rotary Table (B – Axis) | Degree / Resolution | 360° (0.001°) | 360° (0.001°) | 360° (0.001°) |
| Rotary Table Size | mm | 1400 x 1600 | 1500 x 1700 | 1800 x 2000 |
| Table Maximum Loading Capacity | Kgs | 6000 | 8000 | 10000 |
| Table Rotation Speed | rpm | 2 | 2 | 1 |
| No of T Slot / Size / Pitch | 9 / 22 / 140 | 9 / 28 / 160 | 11 / 28 / 160 | |
| Feed | ||||
| Rapid Feed X Y Z Axis | mm/min. | 8000 | 8000 | 8000 |
| Raid Feed W Axis | mm/min. | 4000 | 4000 | 4000 |
| Feed X Y Z W Axis | mm/min. | 0 – 4000 | 0 – 4000 | 0 – 4000 |
| Automatic Tool Changer (Optional) | ||||
| No. of Tools | Pcs | 30 / 40 | 30 / 40 | 30 / 40 |
| Tools Shank | MAS BT – 50 | MAS BT – 50 | MAS BT – 50 | |
| Maximum Tool Diameter / | mm | 125 / 250 | 125 / 250 | 125 / 250 |
| Adjacent Empty Pockets | ||||
| Maximum Tool Length | mm | 400 | 400 | 400 |
| Maximum Tool Weight | Kgs | 20 | 20 | 20 |
| Tool Change Time | Sec. | 15 | 15 | 15 |
| Detachable Facing Head (Optional) | ||||
| Diameter | mm | 630 | 630 | 800 |
| Maximum Facing Diameter | mm | 1000 | 1000 | 1200 |
| Speed | rpm | 0 – 180 | 0 – 180 | 0 – 180 |
| Facing Slide Traverse (U Axis) | mm | 200 | 200 | 200 |
| Accuracy | ||||
| Positioning Accuracy (X Y Z W Axis) | mm | 0.020 / 1000 | 0.020 / 1000 | 0.020 / 1000 |
| Repeatability (X Y Z W Axis) | mm | 0.010 / 1000 | 0.010 / 1000 | 0.010 / 1000 |
| Positioning Accuracy B Axis | Degree | ± 5 Second | ± 5 Second | ± 5 Second |
| CNC Controller | Siemens / Fanuc / Mitsubishi | |||
